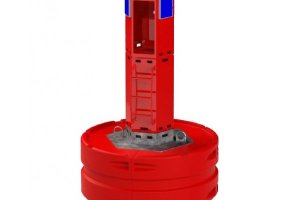

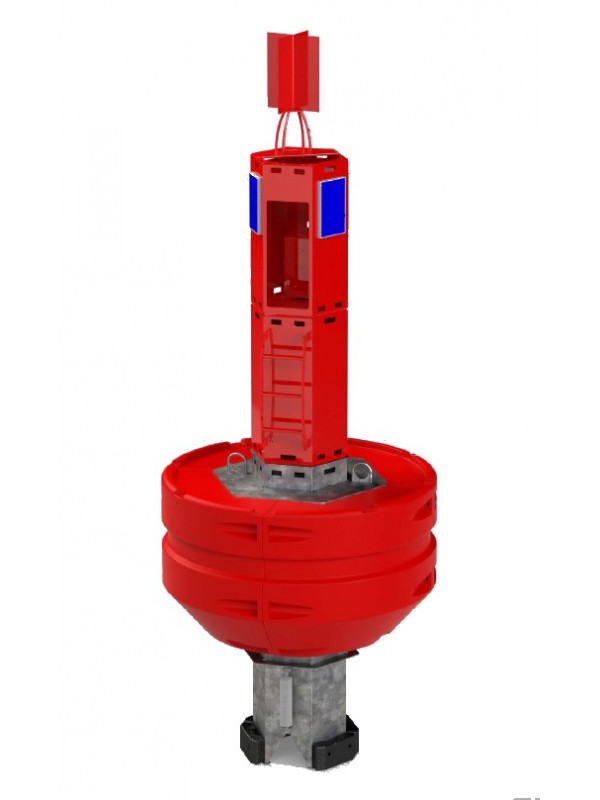

FLC2600 lateral buoy
HIGH-QUALITY MATERIALS
Structure, Lifting and Mooring Points: S235 hot dip galvanized steel
Float: UV-stabilized Polyethylene high-density UV15 grade, thickness 22mm
Mast: Aluminium 5083/5086 marine grade
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational molding for no painting ever.
Ballasts: Cast Iron
Topmark: Aluminium 5083/5086 marine grade
Radar Reflector: Aluminium 5083/5086 marine grade
Eco-friendly: Recyclable polyethylene. Heavy metal-free. No ecological damages

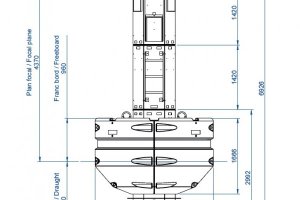

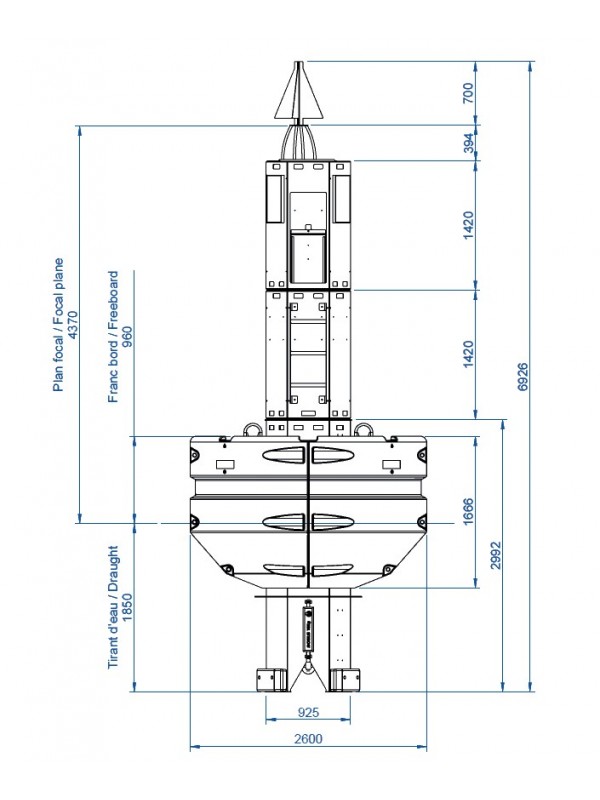

DATA SHEET
|
Diameter |
2600 |
|
Volume |
5900 |
|
Draught |
1850 |
|
Freeboard |
960 |
|
Overall Height (with topmark) |
6940 |
|
Mast |
2834 |
|
Weight with balast |
1814 |
|
Visible area |
6.4 |
|
Focal plane |
4370 |
